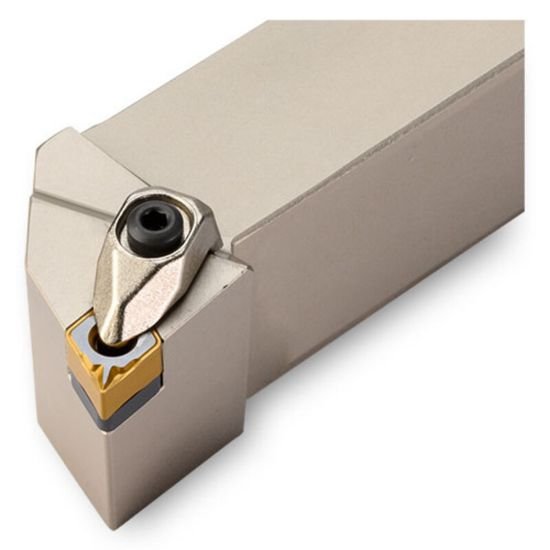

Picture of Ingersoll TXJNL16-2.7D Turning Stick Tool 70.0° Square 1.000 Steel

Ingersoll TXJNL16-2.7D Turning Stick Tool 70.0° Square 1.000 Steel

Part Number: ING6213207 ISO: TXJNL16-2.7D ANSI:TXJNL16-2.7D
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$138.13
SKU: 1048960

Description

INGERSOLL 6213207 TXJNL16-2.7D Turning Stick Tool 70.0° Square 1.000 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp/Wedge 6120126
Seat/Nest 6317066
Seat Screw 4351689
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 09 "2.7"
Tool Over Hang 0.9800
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 15.0° Clearance Angle
Clearance Angle 15.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 70.0°
