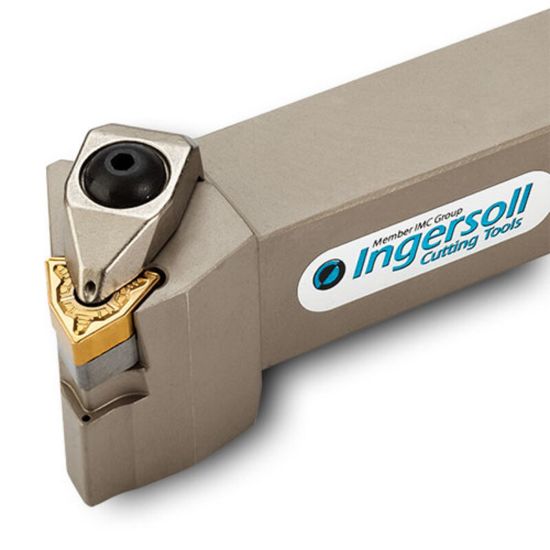

Picture of INGERSOLL TWLNR16-4D-TB Turning Stick Tool Trigon Square 1.000 Steel

INGERSOLL TWLNR16-4D-TB Turning Stick Tool Trigon Square 1.000 Steel

ANSI: TWLNR16-4D-TB

ISO: TWLNR16-4D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6187244
Delivery date: 3-5 days
$291.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

T-type Holder for external turning Accepts negative 80° trigon inserts High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 Trigon
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Machine Side STICK TOOL1.0000
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Over Hang 1.2600
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style WN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Seat/Nest 4352024
Coolant Thru Yes
Inter/Extern External
Fasteners & Connectors
Clamp Screw 6168586
Seat Screw 4350825
Clamp/Wedge 6132052
