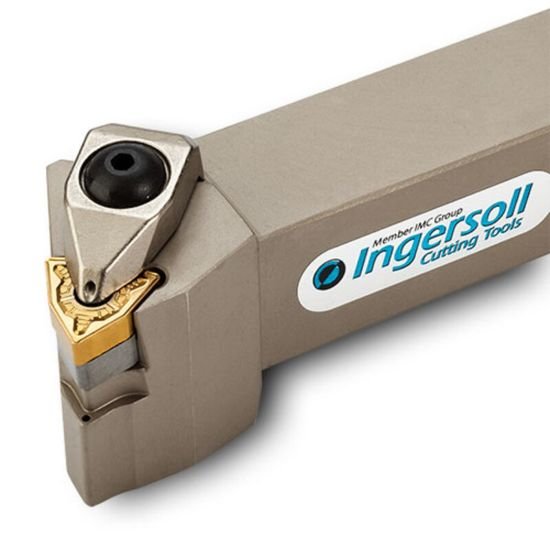

Picture of Ingersoll TWLNR16-4D-TB Turning Stick Tool Trigon Square 1.000 Steel

Ingersoll TWLNR16-4D-TB Turning Stick Tool Trigon Square 1.000 Steel

Part Number: ING6187244 ISO: TWLNR16-4D-TB ANSI:TWLNR16-4D-TB
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1048953
Vendor: Sussex Tool and Supply
$306.13

Description

INGERSOLL 6187244 Trigon Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp Screw 6168586
Clamp/Wedge 6132052
Seat/Nest 4352024
Seat Screw 4350825
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Tool Over Hang 1.2600
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
