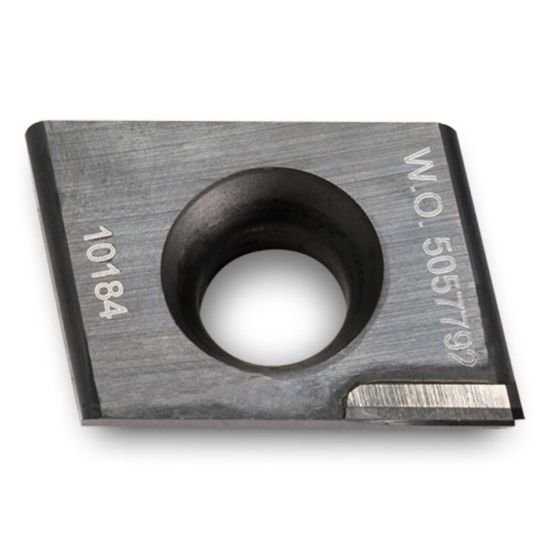

Picture of Ingersoll TRGPP05MR PB Milling Insert On Edge 0.016 PCD TediFeed

Ingersoll TRGPP05MR PB Milling Insert On Edge 0.016 PCD TediFeed

Part Number: ING2717467

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1007985
Vendor: Sussex Tool and Supply
$72.80
This product has a minimum quantity of 10
PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.
Products specifications
Attribute name Attribute value
Insert Application Roughing, Semi Finishing
Cutter Type Insert
Depth Of Cut Max 0.5000
Insert Size (IC) P0
Insert Type Positive
Cutting Edge Definition PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.
Insert Style TR
Grade PB
Insert Or Tool INSERT
Insert Shape Or Cutter Pocket Shape Brazed End
Shipping State ILLINOIS
Family Group Tedifeed
Cutting Edge Material PCD
Insert Fits On Edge
Coating PCD
Corner Radius 0.0160 0.41MM
Made In USA No
