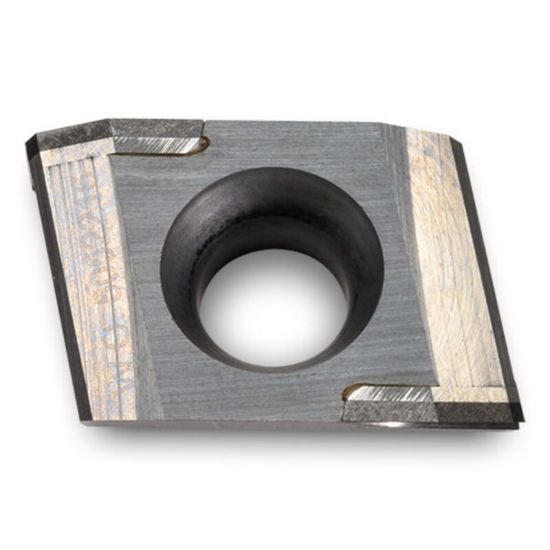

Picture of Ingersoll TRGCA92BR CH Milling Insert On Edge 0.016 PCD TediFeed

Ingersoll TRGCA92BR CH Milling Insert On Edge 0.016 PCD TediFeed

Part Number: ING2717534 ISO: TRGCA92BR CH ANSI:TRGCA92BR CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1007950
Vendor: Sussex Tool and Supply
$136.00
This product has a minimum quantity of 10
INGERSOLL 2717534 Brazed End Insert Positive PCD unlike single crystalline diamond, produced synthetically by sintering together many (Poly) diamond particles, usually in the size of 2 to 30 microns of a meter, with a metal binder (usually Cobalt) at high temperature and high pressure. The rate is 90-95% diamond particles and the rest is Cobalt.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat PCD
Cut Rating Graphite, Gray Iron, Ductile Iron, >50HRC Steel
Coating PCD
Insert/Tool INSERT
Insert Application Roughing, Semi Finishing
Corner Radius 0.0160 0.41MM
Insert Style TR
Insert Shape/Cutter Pocket Shape Brazed End
Grade CH
Insert Type Positive
Insert Size Ic A9
Insert Fits On Edge
Depth Of Cut Max 0.1600
