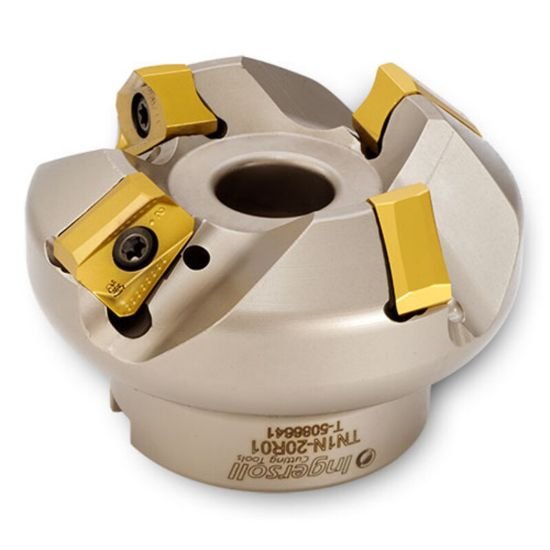

Picture of Ingersoll TN1N-20R01 Milling Cutter 45.0° 2.000 Shell0.7500 4 Flute 0.33 Max DOC 1.750 OAL

Ingersoll TN1N-20R01 Milling Cutter 45.0° 2.000 Shell0.7500 4 Flute 0.33 Max DOC 1.750 OAL

Part Number: ING3025680 ISO: TN1N-20R01 ANSI:TN1N-20R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009021
Vendor: Sussex Tool and Supply
$585.20

Description

INGERSOLL 3025680 Parallelogram 45.0°, Face Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.3300
Cut Dia Max 2.7500 69.85MM
Materials & Finish
Tool Material Steel
