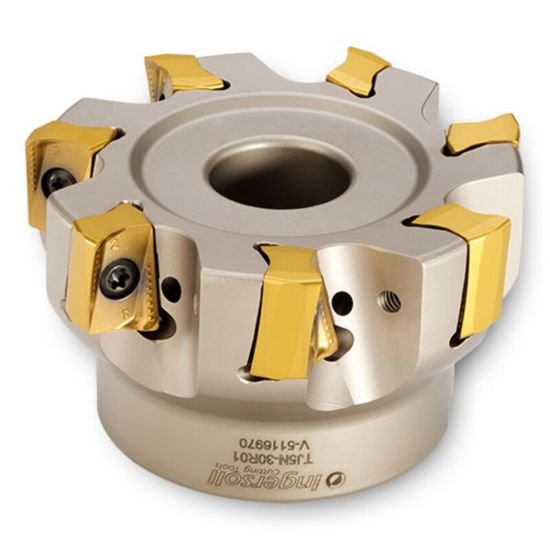

Picture of Ingersoll TJ5N-50R01 Milling Cutter 90.0° 5.000 Shell1.5000 10 Flute Coolant 0.59 Max DOC 2.375 OAL

Ingersoll TJ5N-50R01 Milling Cutter 90.0° 5.000 Shell1.5000 10 Flute Coolant 0.59 Max DOC 2.375 OAL

Part Number: ING3025676 ISO: TJ5N-50R01 ANSI:TJ5N-50R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009017
Vendor: Sussex Tool and Supply
$1,474.67

Description

INGERSOLL 3025676 Parallelogram 90.0°, Face Mill SHELL1.5000 Negative 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Flutes/Inserts 10
Tool Dia 5.0000 127.00MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.5900
Max Ramp Angle 0.20°
Materials & Finish
Tool Material Steel
