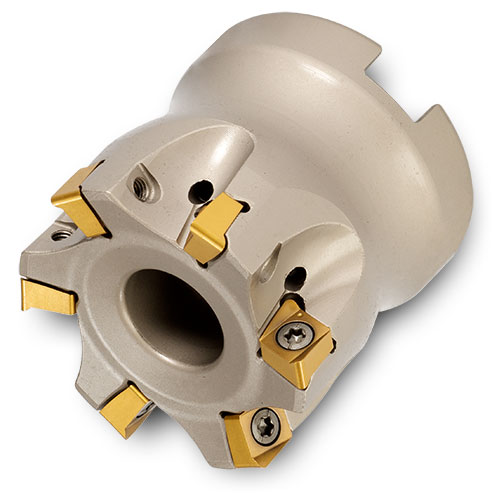

Picture of Ingersoll TJ1D-30R01 Milling Cutter Backdraft 3.000 Shell1.0000 9 Flute Coolant 0.24 Max DOC 1.750 OAL

Ingersoll TJ1D-30R01 Milling Cutter Backdraft 3.000 Shell1.0000 9 Flute Coolant 0.24 Max DOC 1.750 OAL

Part Number: ING2923600 ISO: TJ1D-30R01 ANSI:TJ1D-30R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$776.53
SKU: 1008617

Description

INGERSOLL 2923600 Parallelogram Feed Mill,Copy Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 9
Tool Dia 3.0000 76.20MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.2400
Max Ramp Angle 1.30°
Materials & Finish
Tool Material Steel
