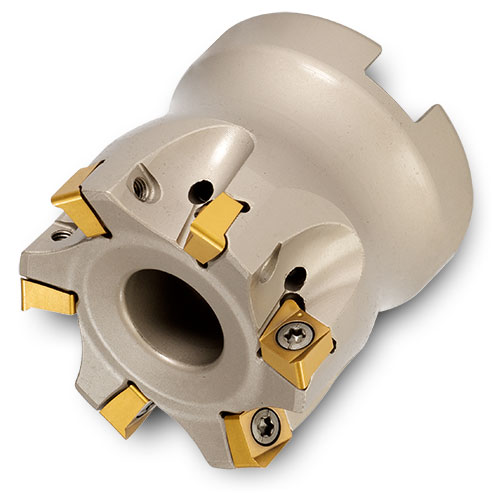

Picture of Ingersoll TJ1D-25R01 Milling Cutter Backdraft 2.500 Shell0.7500 8 Flute Coolant 0.24 Max DOC 1.570 OAL

Ingersoll TJ1D-25R01 Milling Cutter Backdraft 2.500 Shell0.7500 8 Flute Coolant 0.24 Max DOC 1.570 OAL

Part Number: ING2923594 ISO: TJ1D-25R01 ANSI:TJ1D-25R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$718.67
SKU: 1008616

Description

INGERSOLL 2923594 Parallelogram Feed Mill,Copy Mill SHELL0.7500 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 8
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.2400
Max Ramp Angle 1.60°
Materials & Finish
Tool Material Steel
