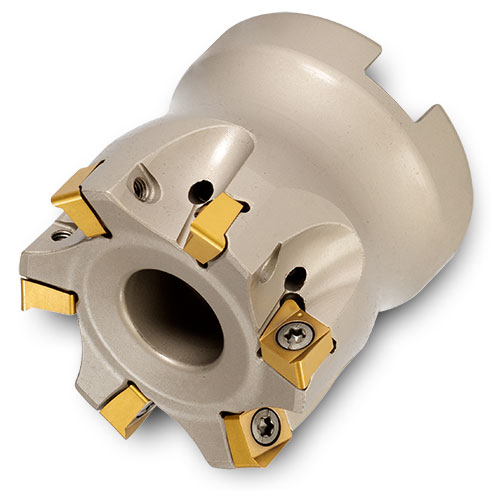

Picture of Ingersoll TJ1D-20R01 Milling Cutter Backdraft 2.000 Shell0.7500 7 Flute Coolant 0.24 Max DOC 1.570 OAL

Ingersoll TJ1D-20R01 Milling Cutter Backdraft 2.000 Shell0.7500 7 Flute Coolant 0.24 Max DOC 1.570 OAL

Part Number: ING2910900 ISO: TJ1D-20R01 ANSI:TJ1D-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008364
Vendor: Sussex Tool and Supply
$627.00
INGERSOLL 2910900 Parallelogram Feed Mill,Copy Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5700 39.88MM
Coolant Thru Thru Coolant
Flutes/Inserts 7
Tool Dia 2.0000 50.80MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 5
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2400
Max Ramp Angle 2.00°
