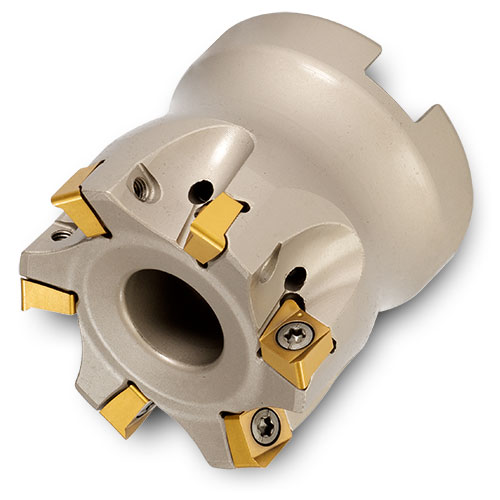

Picture of Ingersoll TJ1D-15R01 Milling Cutter Backdraft 1.500 Shell0.5000 6 Flute Coolant 0.24 Max DOC 1.570 OAL

Ingersoll TJ1D-15R01 Milling Cutter Backdraft 1.500 Shell0.5000 6 Flute Coolant 0.24 Max DOC 1.570 OAL

Part Number: ING2910906 ISO: TJ1D-15R01 ANSI:TJ1D-15R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008365
Vendor: Sussex Tool and Supply
$538.00
INGERSOLL 2910906 Parallelogram Feed Mill,Copy Mill SHELL0.5000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.5000 12.70MM
Overall Length 1.5700 39.88MM
Coolant Thru Thru Coolant
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Insert Size Ic 5
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2400
Max Ramp Angle 2.80°
