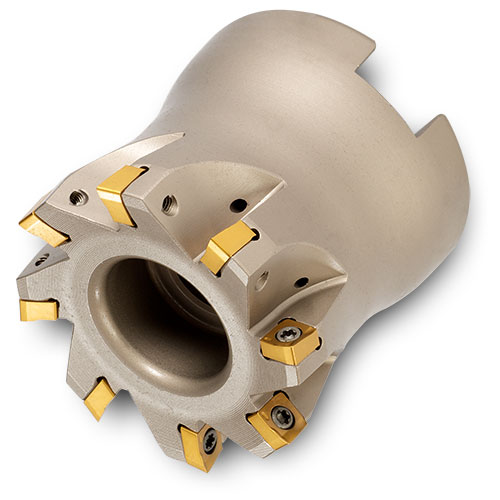

Ingersoll TJ1C-15R01 Milling Cutter Backdraft 1.500 Arbor 0.5000 8 Flute Coolant 0.18 Max DOC 1.570 OAL

Part Number: ING2910937 ISO: TJ1C-15R01 ANSI:TJ1C-15R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$659.87
SKU: 1008389

Description

INGERSOLL 2910937 Parallelogram Feed Mill,Copy Mill Arbor 0.5000 Negative 1.5000 38.10MM - 1-1/2 Cutter Dia
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 8
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.1800
Max Ramp Angle 1.30°
Materials & Finish
Tool Material Steel
