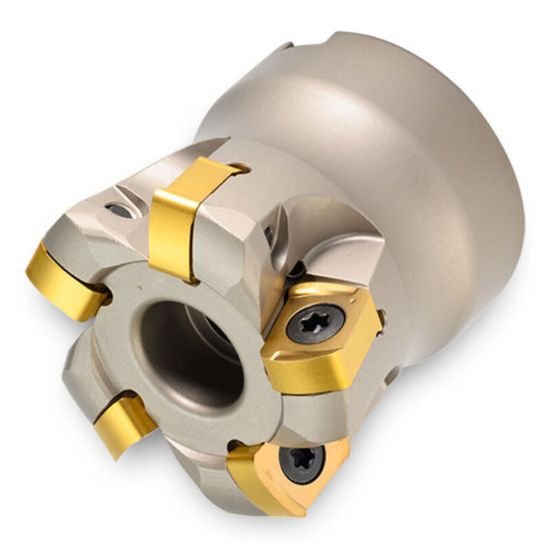

Picture of Ingersoll TG2J-40R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

Ingersoll TG2J-40R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

Part Number: ING2926181   ISO: TG2J-40R01  ANSI:TG2J-40R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008064
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

INGERSOLL 2926181   Feed Mill SHELL1.2500 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool Face / Shell Mill
Insert/Tool INSERT
Cut Type General Purpose
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Insert Screw SM50-127-10
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Flutes/Inserts 6
Tool Dia 4.0000 101.60MM
Insert Size Ic 11
Performance & Capacity
Cut Dia Min 3.3840 85.95MM
Depth Of Cut Max 0.0780
Max Ramp Angle 0.30°
Materials & Finish
Tool Material Steel
