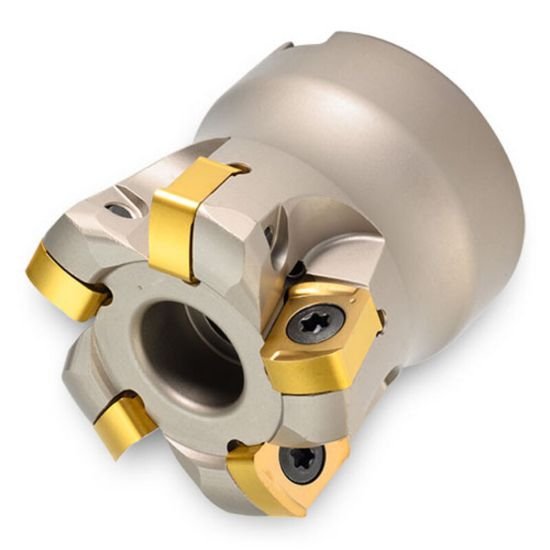

Picture of Ingersoll TG2J-25R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

Ingersoll TG2J-25R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

Part Number: ING2926177   ISO: TG2J-25R01  ANSI:TG2J-25R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008060
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

INGERSOLL 2926177   Feed Mill SHELL0.7500 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool Face / Shell Mill
Insert/Tool INSERT
Cut Type General Purpose
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Hand Right Hand
Insert Screw SM50-127-10
Dimensions & Sizing
Overall Length 1.9690 50.01MM
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 11
Performance & Capacity
Cut Dia Min 1.8840 47.85MM
Depth Of Cut Max 0.0780
Max Ramp Angle 0.45°
Materials & Finish
Tool Material Steel
