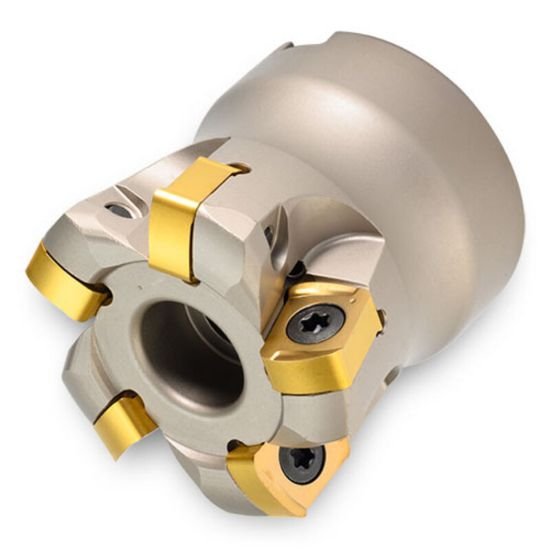

Picture of Ingersoll TG1J-40R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

Ingersoll TG1J-40R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

Part Number: ING2926182   ISO: TG1J-40R01  ANSI:TG1J-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008063
Vendor: Sussex Tool and Supply
$1,085.00
INGERSOLL 2926182   Feed Mill SHELL1.2500 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.2500 31.75MM
Overall Length 2.3750 60.33MM
Flutes/Inserts 7
Tool Dia 4.0000 101.60MM
Type Of Tool Face / Shell Mill
Insert/Tool INSERT
Cut Type General Purpose
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 11
Cut Dia Min 3.3840 85.95MM
Hand Right Hand
Depth Of Cut Max 0.0780
Insert Screw SM50-127-10
Max Ramp Angle 0.30°
