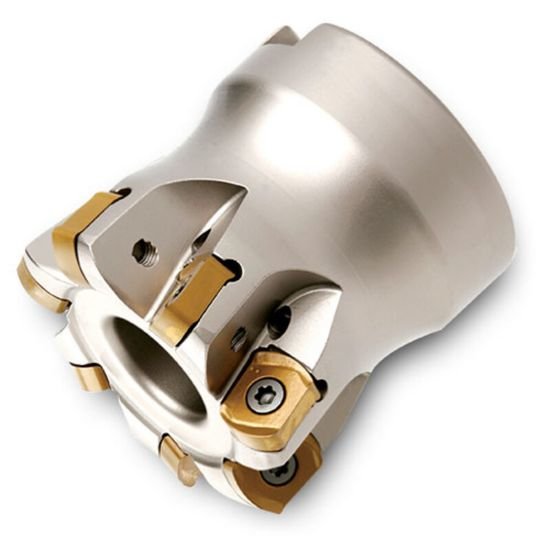

Picture of Ingersoll TG1G-30R01 Milling Cutter 3.000 Shell1.0000 9 Flute Coolant 0.06 Max DOC 1.750 OAL

Ingersoll TG1G-30R01 Milling Cutter 3.000 Shell1.0000 9 Flute Coolant 0.06 Max DOC 1.750 OAL

Part Number: ING2906787 ISO: TG1G-30R01 ANSI:TG1G-30R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008291
Vendor: Sussex Tool and Supply
$1,017.33

Description

INGERSOLL 2906787 Feed Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 9
Tool Dia 3.0000 76.20MM
Performance & Capacity
Cut Dia Min 2.5660 65.18MM
Depth Of Cut Max 0.0600
Cut Dia Max 3.0000 76.20MM
Max Ramp Angle 0.62°
Materials & Finish
Tool Material Steel
