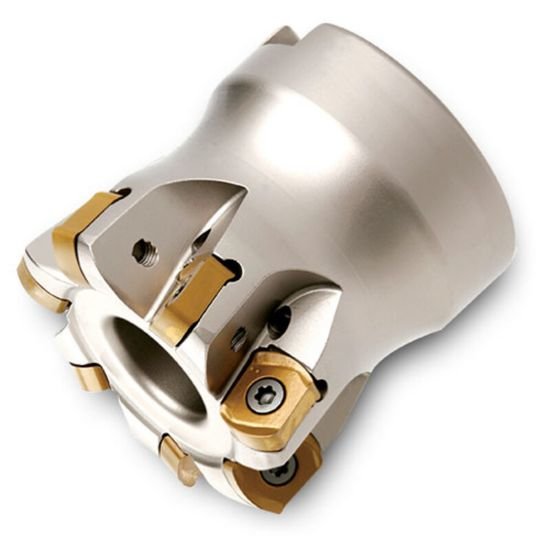

Picture of Ingersoll TG1G-20R01 Milling Cutter 2.000 Shell0.7500 7 Flute Coolant 0.06 Max DOC 1.970 OAL

Ingersoll TG1G-20R01 Milling Cutter 2.000 Shell0.7500 7 Flute Coolant 0.06 Max DOC 1.970 OAL

Part Number: ING2906727 ISO: TG1G-20R01 ANSI:TG1G-20R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008288
Vendor: Sussex Tool and Supply
$706.53

Description

INGERSOLL 2906727 Feed Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Dimensions & Sizing
Overall Length 1.9700 50.04MM
Flutes/Inserts 7
Tool Dia 2.0000 50.80MM
Performance & Capacity
Cut Dia Min 1.5930 40.46MM
Depth Of Cut Max 0.0600
Cut Dia Max 2.0000 50.80MM
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
