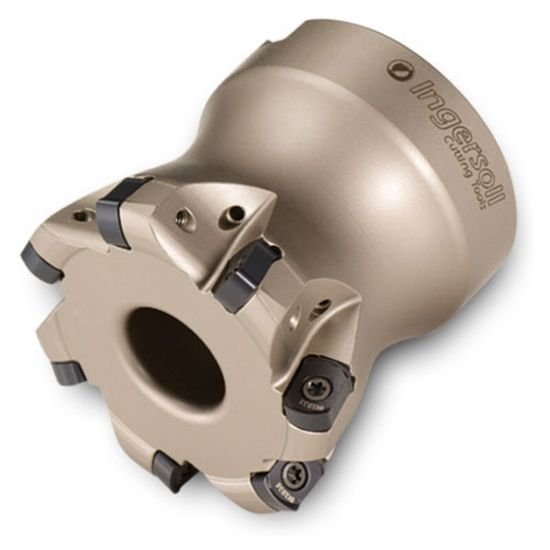

Picture of Ingersoll TG1F040R10 Milling Cutter 1.575 Shell0.6300 6 Flute Coolant 0.0394 Max DOC 1.574 OAL

Ingersoll TG1F040R10 Milling Cutter 1.575 Shell0.6300 6 Flute Coolant 0.0394 Max DOC 1.574 OAL

Part Number: ING3112543 ISO: TG1F040R10 ANSI:TG1F040R10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009608
Vendor: Sussex Tool and Supply
$577.00
INGERSOLL 3112543 Feed Mill SHELL0.6300 Negative 1.5750 40.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.6299 16.00MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 6
Tool Dia 1.5750 40.01MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Cut Dia Min 1.2680 32.21MM
Depth Of Cut Max 0.0394
Cut Dia Max 1.5750 40.01MM
Max Ramp Angle 0.50°
