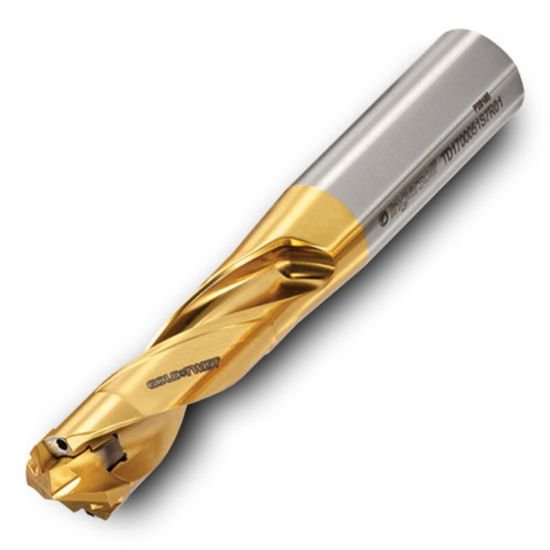

Picture of Ingersoll TD1250037S6R01 0.4921 (12.500 mm)-0.5079 (12.900 mm) GoldTwist Body

Ingersoll TD1250037S6R01 0.4921 (12.500 mm)-0.5079 (12.900 mm) GoldTwist Body

Part Number: ING3212697

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1108504
Vendor: Sussex Tool and Supply
$263.00
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Drill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) BBAR0.6250, WELDON0.6250
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Shank Or Pilot Diameter 0.6250 15.88MM - 5/8
Family Group Gold Twist
Coolant Thru Thru Coolant
Mach Side Connection Size 0.6250 15.88MM - 5/8
Tool Diameter 0.4921 12.50MM
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 140°
Flute Length 1.4600 37.08MM
Cut Diameter Min 0.4921 12.50MM
Diameter Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Diameter Max 0.5080 12.90MM
