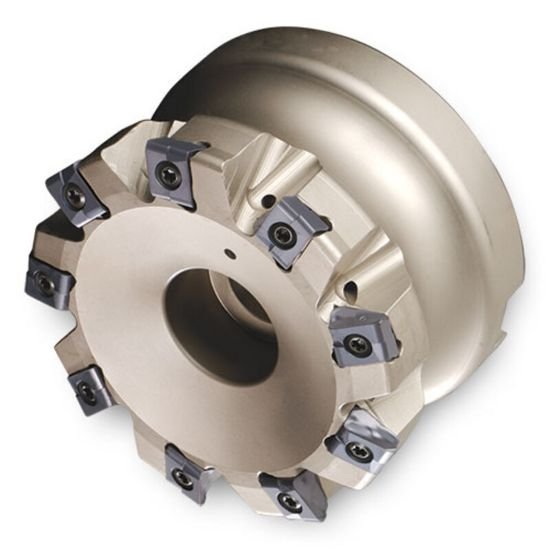

Picture of Ingersoll SP6N-04R02 Milling Cutter 4.000 Shell1.5000 7 Flute Coolant 0.072 Max DOC 2.500 OAL

Ingersoll SP6N-04R02 Milling Cutter 4.000 Shell1.5000 7 Flute Coolant 0.072 Max DOC 2.500 OAL

Part Number: ING3026094 ISO: SP6N-04R02 ANSI:SP6N-04R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009040
Vendor: Sussex Tool and Supply
$1,110.67

Description

INGERSOLL 3026094 Rectagonal Feed Mill SHELL1.5000 Neutral 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DP
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Neutral
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 7
Tool Dia 4.0000 101.60MM
Insert Size Ic 43
Performance & Capacity
Cut Dia Min 2.9290 74.40MM
Depth Of Cut Max 0.0720
Cut Dia Max 4.0000 101.60MM
Max Ramp Angle 0.50°
Materials & Finish
Tool Material Steel
