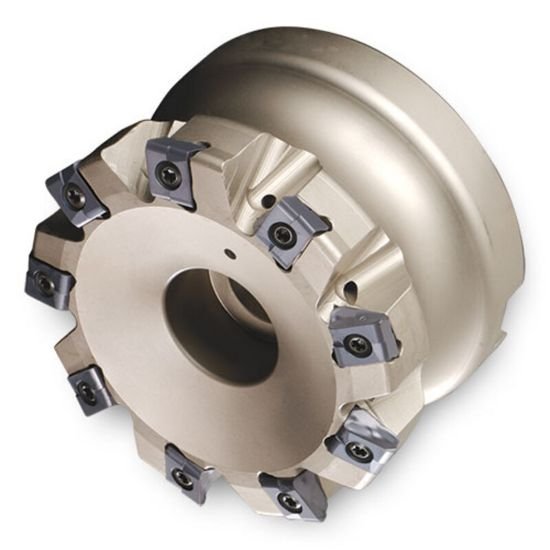

Picture of Ingersoll SP6H-04R02 Milling Cutter 4.000 Shell1.5000 9 Flute Coolant 0.059 Max DOC 2.500 OAL

Ingersoll SP6H-04R02 Milling Cutter 4.000 Shell1.5000 9 Flute Coolant 0.059 Max DOC 2.500 OAL

Part Number: ING3026991 ISO: SP6H-04R02 ANSI:SP6H-04R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009052
Vendor: Sussex Tool and Supply
$1,269.33

Description

INGERSOLL 3026991 Parallelogram Feed Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Flutes/Inserts 9
Tool Dia 4.0000 101.60MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 3.1780 80.72MM
Depth Of Cut Max 0.0590
Cut Dia Max 4.0000 101.60MM
Max Ramp Angle 0.20°
Materials & Finish
Tool Material Steel
