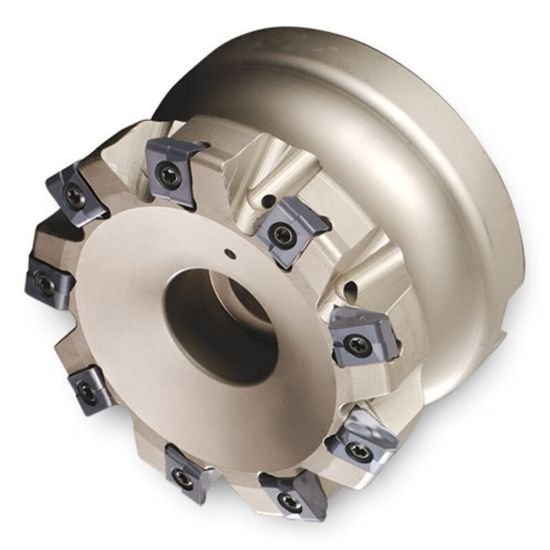

Picture of Ingersoll SP6H-03R02 Milling Cutter 3.000 Shell1.0000 7 Flute Coolant 0.059 Max DOC 1.750 OAL

Ingersoll SP6H-03R02 Milling Cutter 3.000 Shell1.0000 7 Flute Coolant 0.059 Max DOC 1.750 OAL

Part Number: ING3026108 ISO: SP6H-03R02 ANSI:SP6H-03R02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009041
Vendor: Sussex Tool and Supply
$931.47

Description

INGERSOLL 3026108 Parallelogram Feed Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 7
Tool Dia 3.0000 76.20MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 2.1390 54.33MM
Depth Of Cut Max 0.0590
Cut Dia Max 3.0000 76.20MM
Max Ramp Angle 0.20°
Materials & Finish
Tool Material Steel
