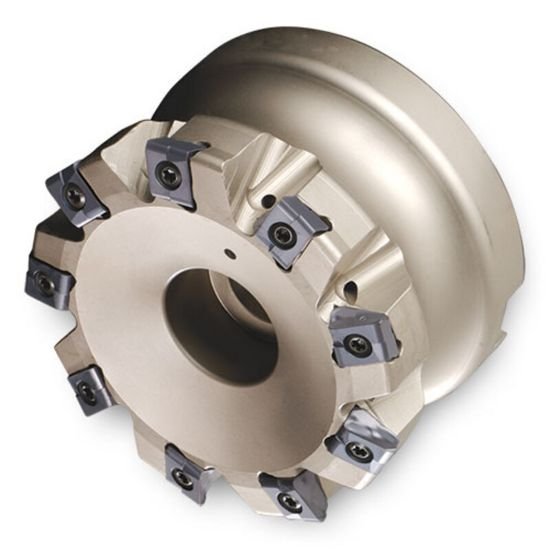

Picture of Ingersoll SP6H-02R01 Milling Cutter 2.000 Shell0.7500 5 Flute Coolant 0.059 Max DOC 1.750 OAL

Ingersoll SP6H-02R01 Milling Cutter 2.000 Shell0.7500 5 Flute Coolant 0.059 Max DOC 1.750 OAL

Part Number: ING3030241 ISO: SP6H-02R01 ANSI:SP6H-02R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009275
Vendor: Sussex Tool and Supply
$683.20

Description

INGERSOLL 3030241 Parallelogram Feed Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 1.1510 29.24MM
Depth Of Cut Max 0.0590
Cut Dia Max 2.0000 50.80MM
Max Ramp Angle 0.40°
Materials & Finish
Tool Material Steel
