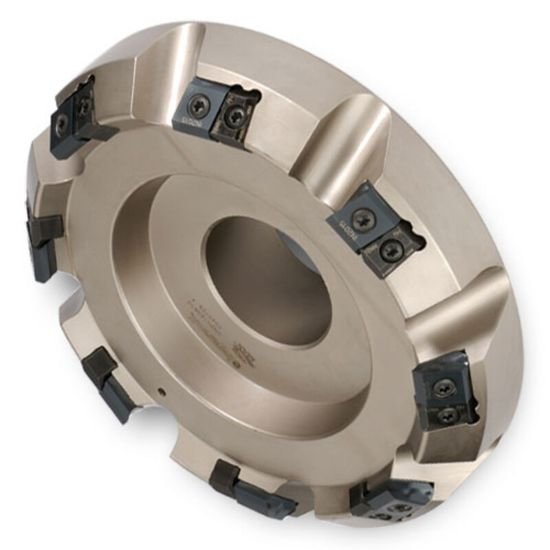

Picture of Ingersoll SN2N-08A01 Milling Cutter 45.0° 8.000 Shell2.5000 10 Flute 0.35 Max DOC 2.375 OAL

Ingersoll SN2N-08A01 Milling Cutter 45.0° 8.000 Shell2.5000 10 Flute 0.35 Max DOC 2.375 OAL

Part Number: ING3029249

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009166
Vendor: Sussex Tool and Supply
$2,190.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 2.5000 63.50MM -2-1/2
Insert Application Roughing, Semi Finishing, Finishing
Cutter Type Face Mill
Cutting Edge Angle 45.0°
Depth Of Cut Max 0.3500
Overall Length 2.3750 60.33MM
Insert Size (IC) 43
Machine Side (Toolpost) SHELL2.5000
Insert Type Negative
Insert Style DP
Type of Tool Face / Shell Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Flat Blade
Machine Side (Toolpost) Connection Type Face Mill/Shell Mill
Flutes Or Inserts 10
Shipping State ILLINOIS
Family Group SMax
Tool Material Steel
Mach Side Connection Size 2.5000 63.50MM - 2-1/2
Tool Diameter 8.0000 203.20MM
Cut Diameter Min 8.0000 203.20MM
Coolant Thru Non Coolant
Cut Diameter Max 8.7000 220.98MM
Made In USA No
