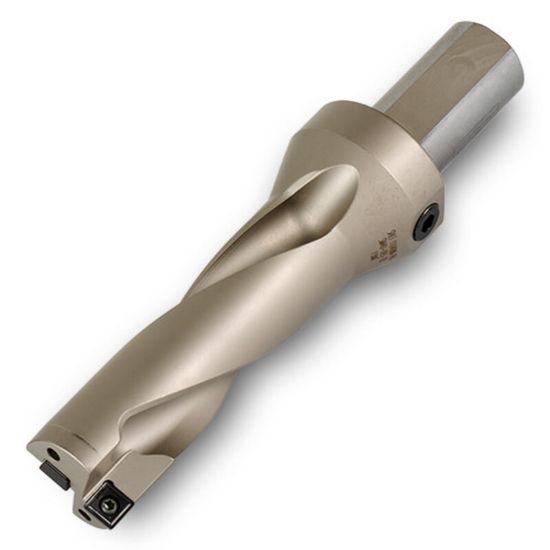

Picture of Ingersoll QF0389117N6R01 1.531 (38.89 mm) Flat Bottom Square Insert Indexable Drill - 3:1 L:D Ratio - 3:1

Ingersoll QF0389117N6R01 1.531 (38.89 mm) Flat Bottom Square Insert Indexable Drill - 3:1 L:D Ratio - 3:1

Part Number: ING6181089 ISO: QF0389117N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107246
Vendor: Sussex Tool and Supply
$794.50
INGERSOLL 6181089 1.531 (38.89 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 8.8200 224.03MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.5312 38.90MM - 1-17/32
Type Of Tool Drill
Flute Length 4.5900 116.59MM
Cut Dia Min 1.5312 38.90MM - 1-17/32
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
