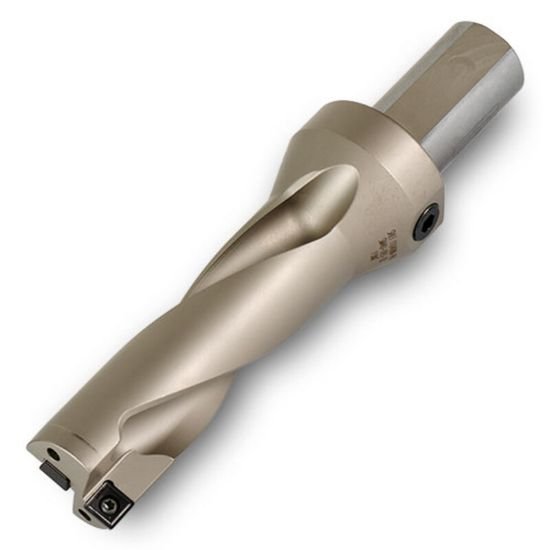

Picture of Ingersoll QF0230069N6R01 0.906 (23.01 mm) Flat Bottom Square Insert Indexable Drill - 3:1 L:D Ratio - 3:1

Ingersoll QF0230069N6R01 0.906 (23.01 mm) Flat Bottom Square Insert Indexable Drill - 3:1 L:D Ratio - 3:1

Part Number: ING3224072 ISO: QF0230069N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107222
Vendor: Sussex Tool and Supply
$595.00
INGERSOLL 3224072 0.906 (23.01 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 6.4600 164.08MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 0.9063 23.02MM - 29/32
Type Of Tool Drill
Flute Length 2.7200 69.09MM
Cut Dia Min 0.9062 23.02MM - 29/32
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
