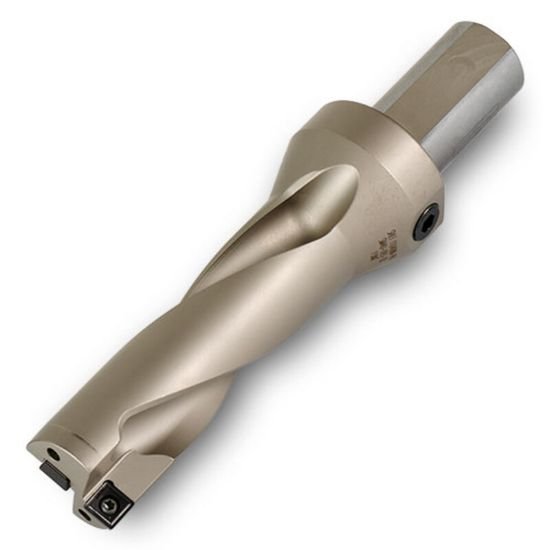

Picture of Ingersoll QF0206062N5R01 0.813 (20.65 mm) Flat Bottom Square Insert Indexable Drill - 3:1 L:D Ratio - 3:1

Ingersoll QF0206062N5R01 0.813 (20.65 mm) Flat Bottom Square Insert Indexable Drill - 3:1 L:D Ratio - 3:1

Part Number: ING3223664 ISO: QF0206062N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107217
Vendor: Sussex Tool and Supply
$595.00
INGERSOLL 3223664 0.813 (20.65 mm) Flat Bottom Square Insert Indexable Drill - 3:1|L:D Ratio - 3:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.9100 150.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8130 20.65MM
Type Of Tool Drill
Flute Length 2.4400 61.98MM
Cut Dia Min 0.8130 20.65MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
