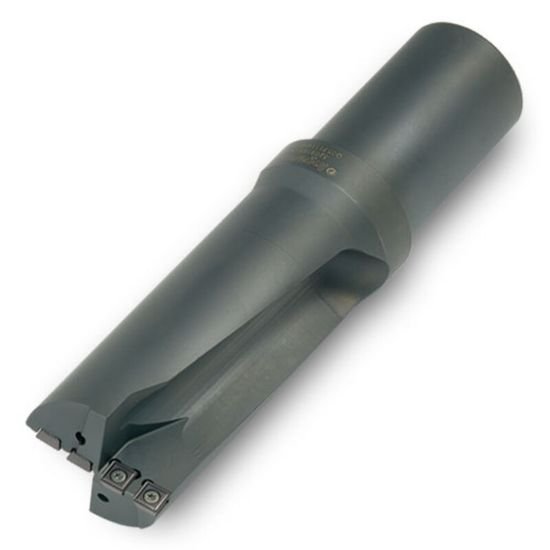

Picture of Ingersoll Q0730219N8R01 2.875 (73.03 mm) Large Diameter Indexable Drills L:D Ratio - 3:1

Ingersoll Q0730219N8R01 2.875 (73.03 mm) Large Diameter Indexable Drills L:D Ratio - 3:1

Part Number: ING3200017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107033
Vendor: Sussex Tool and Supply
$1,480.00
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Drill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) BBAR2.0000, WELDON2.0000
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 13.3858 340.00MM
Shank Or Pilot Diameter 2.0000 50.80MM
Family Group Quad Drill
Coolant Thru Thru Coolant
Mach Side Connection Size 2.0000 50.80MM
Tool Diameter 2.8750 73.03MM - 2-7/8
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 8.6300 219.20MM
Cut Diameter Min 2.8750 73.03MM - 2-7/8
Diameter Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
