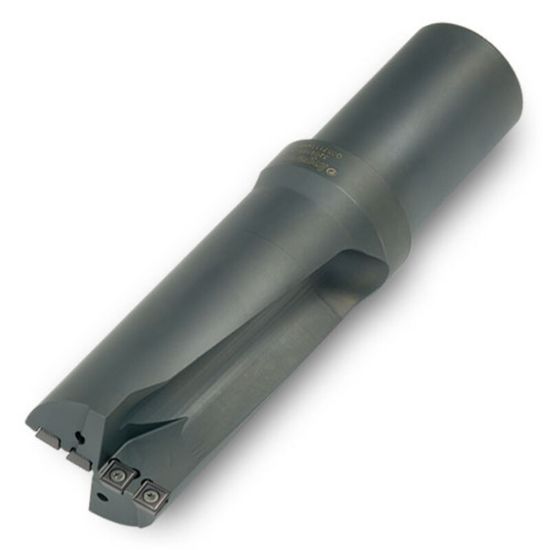

INGERSOLL Q0571114N8R01 2.250 (57.15 mm) Large Diameter Indexable Drills|L:D Ratio - 2:1|

ISO: Q0571114N8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3200003
Delivery date: 3-5 days
$1,130.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Multi Insert
Sold by Pieces 1
Additional Key Information 1 Indexable Drill
Application Drilling, Multi Insert Drilling
Shipping State Illinois
Additional Key Information 3 Drill
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Dia Deep 2.0XD
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side BBAR2.0000,WELDON2.0000
Overall Len 9.2500 234.95MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Flute Length 4.5000 114.30MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
