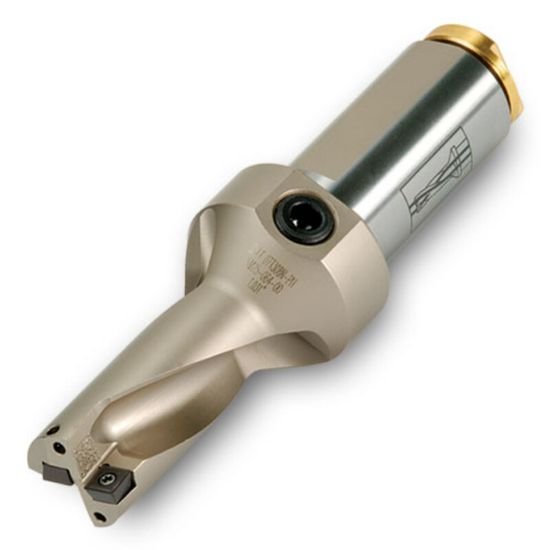

Picture of Ingersoll Q0191038N5R01 0.750 (19.05 mm) Square Insert Indexable Drills L:D Ratio - 2:1

Ingersoll Q0191038N5R01 0.750 (19.05 mm) Square Insert Indexable Drills L:D Ratio - 2:1

Part Number: ING3240688 ISO: Q0191038N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107091
Vendor: Sussex Tool and Supply
$535.50
INGERSOLL 3240688 0.750 (19.05 mm) Square Insert Indexable Drills|L:D Ratio - 2:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.8400 122.94MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool Drill
Flute Length 1.5000 38.10MM
Cut Dia Min 0.7500 19.05MM - 3/4
Dia Deep 2.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
