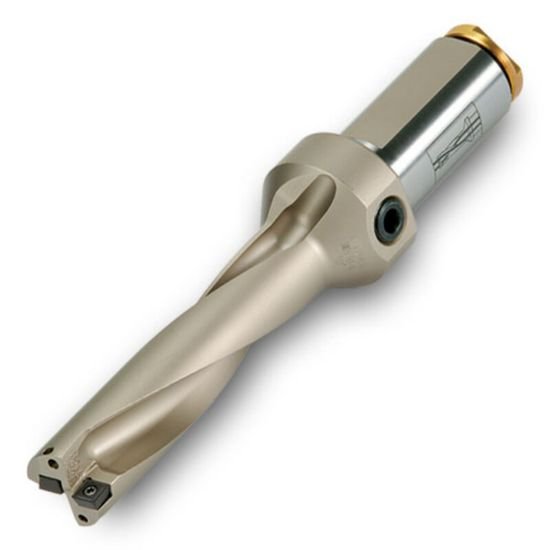

Picture of Ingersoll Q0175070N5R01 0.688 (17.48 mm) Square Insert Indexable Drills L:D Ratio - 4:1

Ingersoll Q0175070N5R01 0.688 (17.48 mm) Square Insert Indexable Drills L:D Ratio - 4:1

Part Number: ING3240697 ISO: Q0175070N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107094
Vendor: Sussex Tool and Supply
$646.63
INGERSOLL 3240697 0.688 (17.48 mm) Square Insert Indexable Drills|L:D Ratio - 4:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.1800 156.97MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Type Of Tool Drill
Flute Length 2.7500 69.85MM
Cut Dia Min 0.6875 17.46MM - 11/16
Dia Deep 4.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
