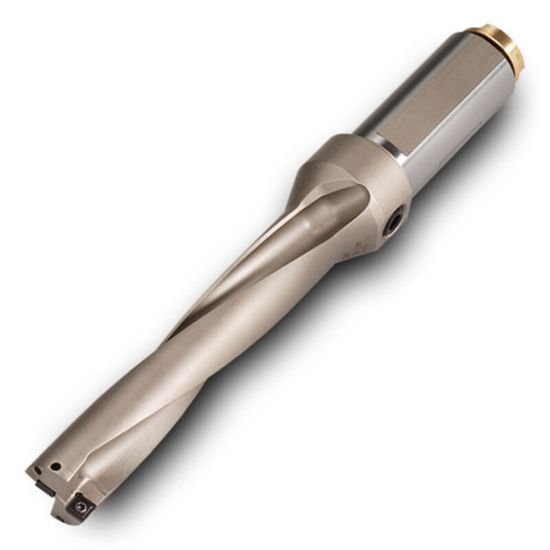

Picture of Ingersoll Q0135067N5R01 0.531 (13.49 mm) Square Insert Indexable Drills L:D Ratio - 5:1

Ingersoll Q0135067N5R01 0.531 (13.49 mm) Square Insert Indexable Drills L:D Ratio - 5:1

Part Number: ING6180983

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107192
Vendor: Sussex Tool and Supply
$631.00
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Drill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) BBAR1.0000, WELDON1.0000
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 5.9800 151.89MM
Shank Or Pilot Diameter 1.0000 25.40MM
Family Group Quad Drill
Coolant Thru Thru Coolant
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 0.5313 13.50MM - 17/32
Flutes Or Inserts 2
Type of Tool Drill
Flute Length 2.6500 67.31MM
Cut Diameter Min 0.5312 13.49MM - 17/32
Diameter Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
