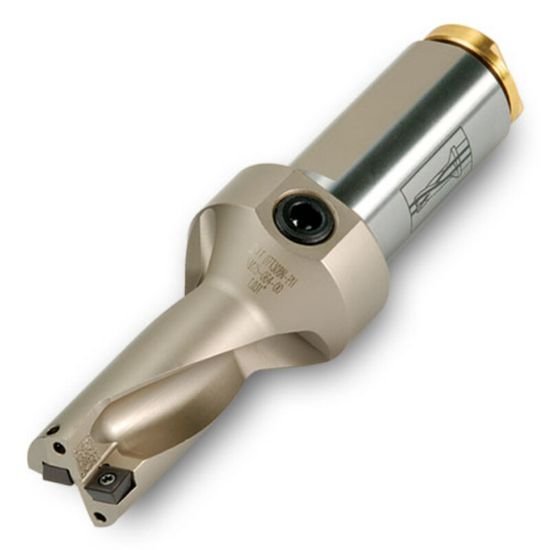

Picture of Ingersoll Q0135027N5R01 0.531 (13.49 mm) Square Insert Indexable Drills L:D Ratio - 2:1

Ingersoll Q0135027N5R01 0.531 (13.49 mm) Square Insert Indexable Drills L:D Ratio - 2:1

Part Number: ING6180726 ISO: Q0135027N5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1107134
Vendor: Sussex Tool and Supply
$473.38
INGERSOLL 6180726 0.531 (13.49 mm) Square Insert Indexable Drills|L:D Ratio - 2:1| Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.3300 109.98MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Flute Length 1.0600 26.92MM
Cut Dia Min 0.5312 13.49MM - 17/32
Dia Deep 2.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
