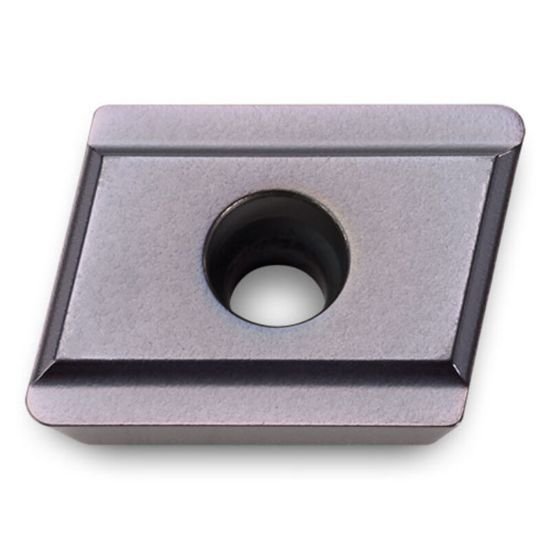

Picture of Ingersoll NP1 2 5 MT04RG IN2005 Hole Making Indexable Drill Insert BTA TiAlN

Ingersoll NP1 2 5 MT04RG IN2005 Hole Making Indexable Drill Insert BTA TiAlN

Part Number: ING4818367 ISO: NPMT12504RG IN2005 ANSI:NPMT12504RG IN2005
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$22.59
This product has a minimum quantity of 10
SKU: 1042680

Description

INGERSOLL 4818367 Indexable Drill Insert Positive TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style NP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Drill Type Gun Drill
Type Indexable Drill BTA
Dimensions & Sizing
Insert Size Ic 12
Geometry & Angles
Corner Radius 0.0080 0.20MM
Performance & Capacity
Cut Rating Stainless Steel, High Temp, <40HRC Steel, Ductile Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IN2005
