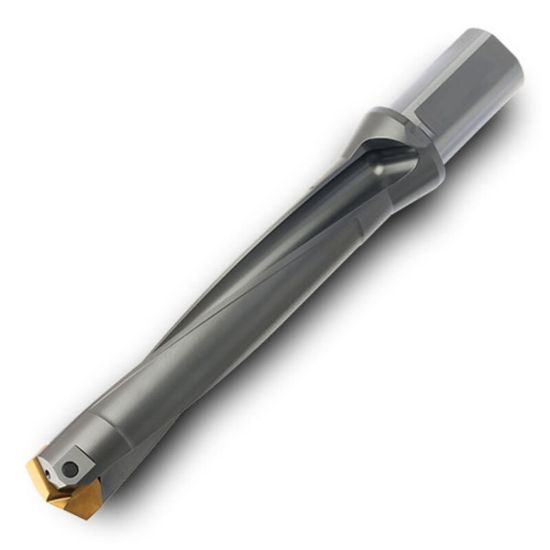

INGERSOLL LD3800190JHR00 1.4961 (38.0 mm)-1.5315 (38.9 mm) SpadeTwist Body

ISO: LD3800190JHR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6120555
Delivery date: 3-5 days
$890.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#4, Material#15
Sold by Pieces 1
Additional Key Information 3 Drill
Package Size 1
Additional Key Information 1 Indexable Drill
Application Drilling, Single Insert Drilling
Shipping State Illinois
Additional Key Information 2 Single Insert
Uncategorized
Made In USA No
Dimensional Specifications
Flute Length 7.7190 196.06MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.5748 40.00MM
Cut Dia Min 1.4961 38.00MM
Flutes/Inserts 2
Tool Material Carbide
Cutter Dia 1.4961 38.00MM
Cut Dia Max 1.5312 38.90MM - 1-17/32
Machine Side CYLINDRICAL1.5748
Shank/Pilot Dia 1.5748 40.00MM
Included Angle 140°
Dia Deep 5.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
