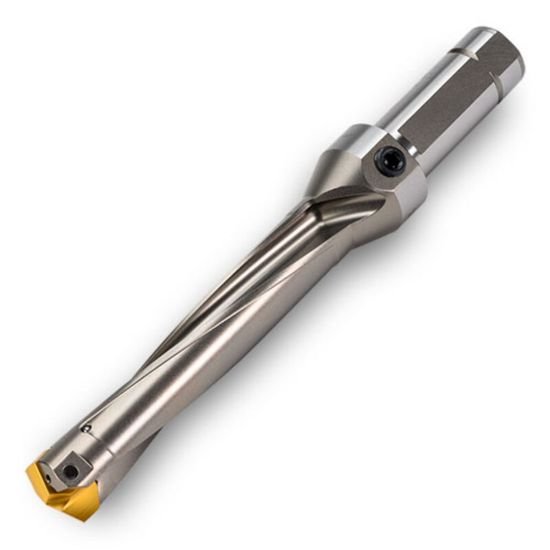

Picture of Ingersoll LD3500175N6R01 1.3780 (35.0 mm)-1.4134 (35.9 mm) SpadeTwist Body

Ingersoll LD3500175N6R01 1.3780 (35.0 mm)-1.4134 (35.9 mm) SpadeTwist Body

Part Number: ING6146033 ISO: LD3500175N6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1108184
Vendor: Sussex Tool and Supply
$855.00
INGERSOLL 6146033 1.3780 (35.0 mm)-1.4134 (35.9 mm) SpadeTwist Body Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.3780 35.00MM
Type Of Tool Drill
Included Angle 140°
Flute Length 7.1100 180.59MM
Cut Dia Min 1.3780 35.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.4134 35.90MM
