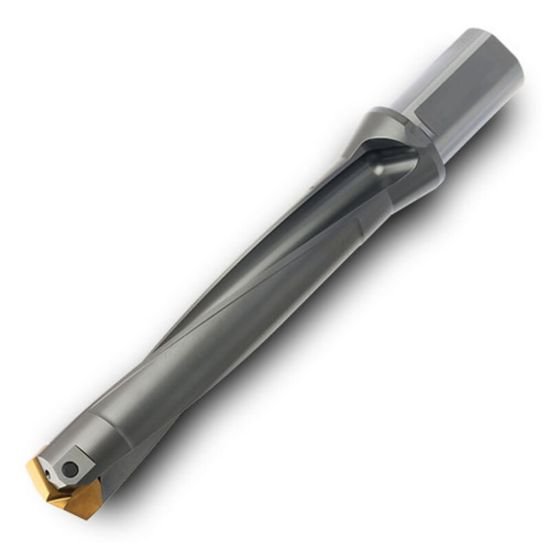

Picture of Ingersoll LD3500175JHR00 1.3780 (35.0 mm)-1.4134 (35.9 mm) SpadeTwist Body

Ingersoll LD3500175JHR00 1.3780 (35.0 mm)-1.4134 (35.9 mm) SpadeTwist Body

Part Number: ING6133585 ISO: LD3500175JHR00
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$882.93
SKU: 1108138

Description

INGERSOLL 6133585 1.3780 (35.0 mm)-1.4134 (35.9 mm) SpadeTwist Body
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Flute Length 7.1090 180.57MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 1.5748 40.00MM
Tool Dia 1.3780 35.00MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 1.3780 35.00MM
Cut Dia Max 1.4134 35.90MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Tool Material Carbide
