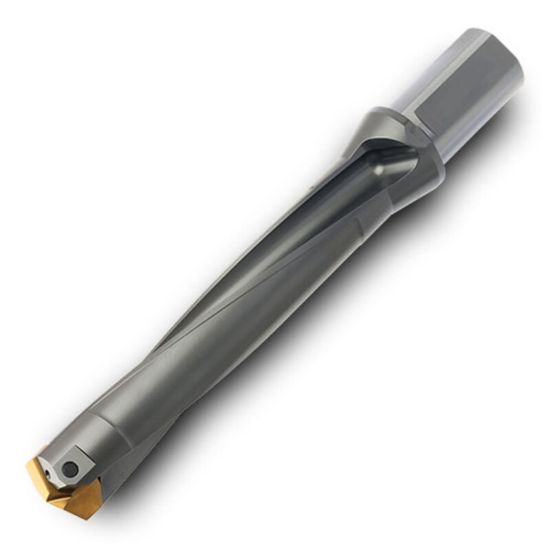

INGERSOLL LD3400272JHR00 1.3386 (34.0 mm)-1.3740 (34.9 mm) SpadeTwist Body

ISO: LD3400272JHR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6185614
Delivery date: 3-5 days
$1,030.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 Drill
Package Size 1
Application Drilling, Single Insert Drilling
Additional Key Information 2 Single Insert
Material # Material#16, Material#4, Material#15
Additional Key Information 1 Indexable Drill
Shipping State Illinois
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Flute Length 10.9190 277.34MM
Tool Material Carbide
Flutes/Inserts 2
Cutter Dia 1.3386 34.00MM
Machine Side CYLINDRICAL1.5748
Shank/Pilot Dia 1.5748 40.00MM
Dia Deep 8.0XD
Included Angle 140°
Cut Dia Max 1.3740 34.90MM
Cut Dia Min 1.3386 34.00MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
