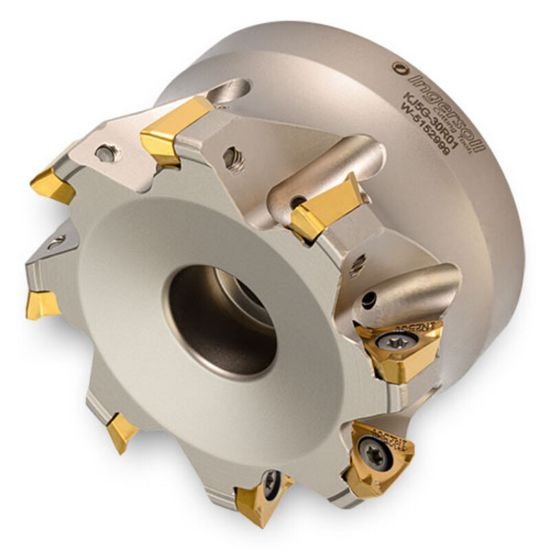

Picture of Ingersoll KJ5G-25R01 Milling Cutter 90.0° 2.500 Arbor 0.7500 6 Flute Coolant 0.41 Max DOC 1.570 OAL

Ingersoll KJ5G-25R01 Milling Cutter 90.0° 2.500 Arbor 0.7500 6 Flute Coolant 0.41 Max DOC 1.570 OAL

Part Number: ING3031432 ISO: KJ5G-25R01 ANSI:KJ5G-25R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$779.33
SKU: 1009400

Description

INGERSOLL 3031432 Triangle 90.0°, Face Mill Arbor 0.7500 Positive 2.5000 63.50MM - 2-1/2 Cutter Dia
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.4100
Max Ramp Angle 1.10°
Materials & Finish
Tool Material Steel
