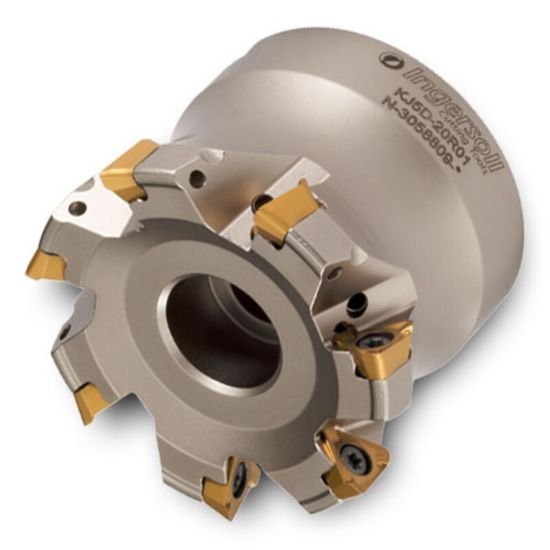

Picture of Ingersoll KJ5D-20R01 Milling Cutter 90.0° 2.000 Shell0.7500 7 Flute Coolant 0.27 Max DOC 1.570 OAL

Ingersoll KJ5D-20R01 Milling Cutter 90.0° 2.000 Shell0.7500 7 Flute Coolant 0.27 Max DOC 1.570 OAL

Part Number: ING3031429 ISO: KJ5D-20R01 ANSI:KJ5D-20R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009397
Vendor: Sussex Tool and Supply
$739.20

Description

INGERSOLL 3031429 Triangle 90.0°, Face Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 7
Tool Dia 2.0000 50.80MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2700
Max Ramp Angle 1.20°
Materials & Finish
Tool Material Steel
