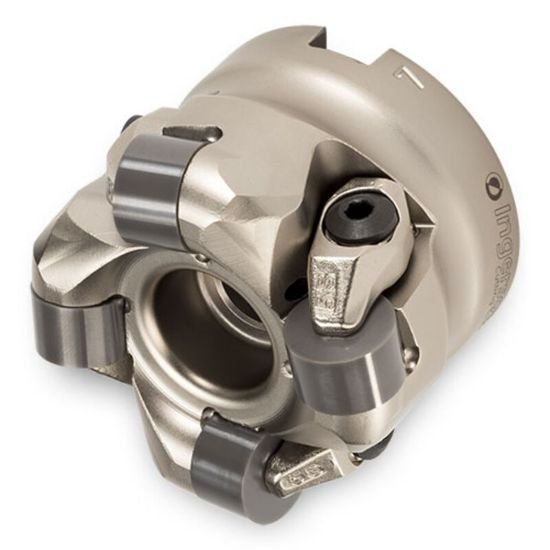

Picture of Ingersoll DW2H-30R02 Milling Cutter Button Cutter 3.000 Shell1.0000 5 Flute 0.25 Max DOC 1.750 OAL

Ingersoll DW2H-30R02 Milling Cutter Button Cutter 3.000 Shell1.0000 5 Flute 0.25 Max DOC 1.750 OAL

Part Number: ING6306943 ISO: DW2H-30R02 ANSI:DW2H-30R02
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009657
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

INGERSOLL 6306943 Round Button Cutter SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Button Cutter
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RN
Insert Shape/Cutter Pocket Shape Round
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 5
Tool Dia 3.0000 76.20MM
Insert Size Ic 12
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.2500
Cut Dia Max 3.0000 76.20MM
Max Ramp Angle 0.20°
Materials & Finish
Tool Material Steel
