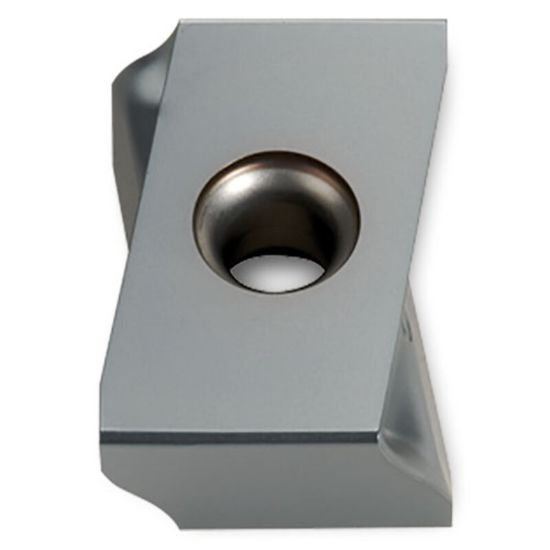

Picture of Ingersoll DPM436R001 IN2015 Milling Insert On Edge 0.031 TiAlN SMax 5830596

Ingersoll DPM436R001 IN2015 Milling Insert On Edge 0.031 TiAlN SMax 5830596

Part Number: ING5830596 ISO: DPM436R001 IN2015 ANSI:DPM436R001 IN2015
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
SKU: 1006629

Description

INGERSOLL 5830596 Rectagonal Insert Negative TiAlN 0.0310 0.79MM
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Insert Style DP
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 43
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, High Temp
Depth Of Cut Max 0.6880
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IN2015
Compatibility & Fit
Insert Fits On Edge
