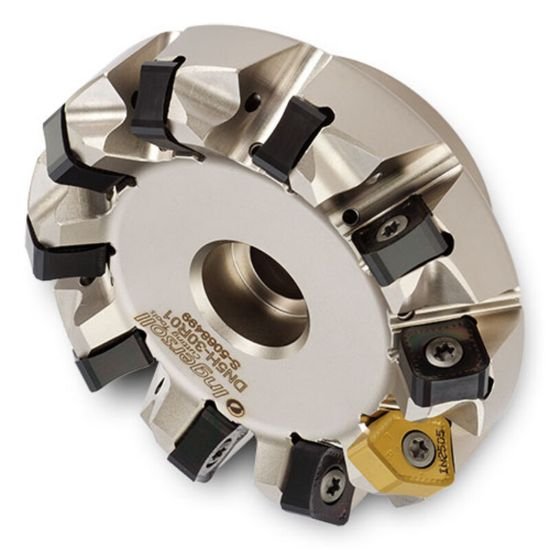

Picture of Ingersoll DN5H-20R01 Milling Cutter 45.0° 2.000 Shell0.7500 6 Flute Coolant 0.24 Max DOC 1.750 OAL

Ingersoll DN5H-20R01 Milling Cutter 45.0° 2.000 Shell0.7500 6 Flute Coolant 0.24 Max DOC 1.750 OAL

Part Number: ING3025633 ISO: DN5H-20R01 ANSI:DN5H-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008987
Vendor: Sussex Tool and Supply
$573.00
INGERSOLL 3025633 Square 45.0°, Face Mill SHELL0.7500 Negative 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.7500 44.45MM
Coolant Thru Thru Coolant
Flutes/Inserts 6
Tool Dia 2.0000 50.80MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Finishing, Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Insert Size Ic 12
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2400
Cut Dia Max 2.5700 65.28MM
Cutting Edge Angle 45.0°
