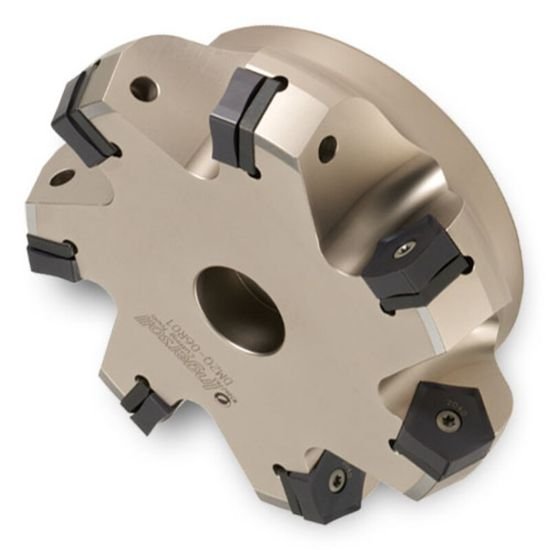

Picture of Ingersoll DM2Q-08R01 Milling Cutter 70.0° 8.000 Shell2.5000 8 Flute 0.47 Max DOC 2.375 OAL

Ingersoll DM2Q-08R01 Milling Cutter 70.0° 8.000 Shell2.5000 8 Flute 0.47 Max DOC 2.375 OAL

Part Number: ING3030223 ISO: DM2Q-08R01 ANSI:DM2Q-08R01
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1009272

Description

INGERSOLL 3030223 Pentagonal 70.0°, Face Mill SHELL2.5000 Negative 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Type Negative
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 8
Tool Dia 8.0000 203.20MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 70.0°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.4700
Cut Dia Max 8.4400 214.38MM
Materials & Finish
Tool Material Steel
