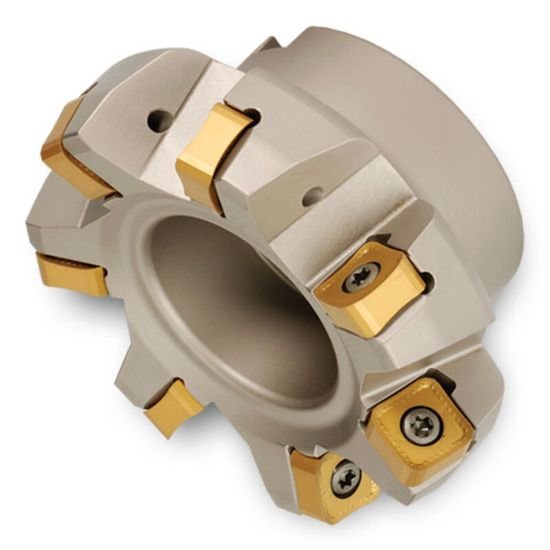

Picture of Ingersoll DL6H-40R01 Milling Cutter 75.0° 4.000 Shell1.5000 8 Flute 2.000 OAL

Ingersoll DL6H-40R01 Milling Cutter 75.0° 4.000 Shell1.5000 8 Flute 2.000 OAL

Part Number: ING3025648 ISO: DL6H-40R01 ANSI:DL6H-40R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008999
Vendor: Sussex Tool and Supply
$970.67

Description

INGERSOLL 3025648 Square 75.0°, Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Cut Dia Max 4.3000 109.22MM
Materials & Finish
Tool Material Steel
