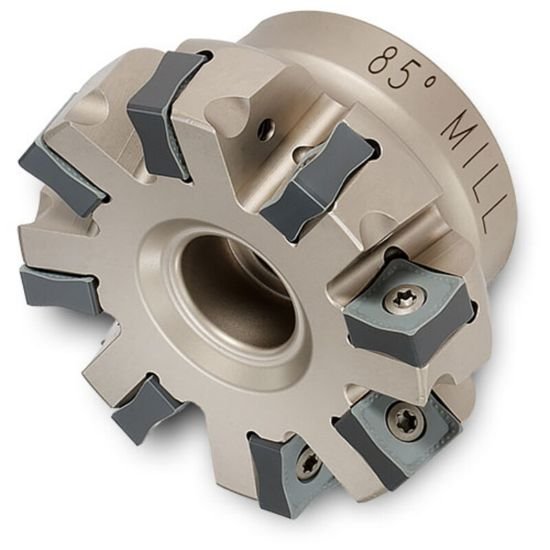

Picture of Ingersoll DL5T-30R01 Milling Cutter 85.5° 3.000 Shell1.0000 8 Flute 0.47 Max DOC 1.750 OAL

Ingersoll DL5T-30R01 Milling Cutter 85.5° 3.000 Shell1.0000 8 Flute 0.47 Max DOC 1.750 OAL

Part Number: ING2911809 ISO: DL5T-30R01 ANSI:DL5T-30R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008419
Vendor: Sussex Tool and Supply
$845.60

Description

INGERSOLL 2911809 Square 85.5°, Face Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 8
Tool Dia 3.0000 76.20MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 85.5°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.4700
Cut Dia Max 3.1100 78.99MM
Materials & Finish
Tool Material Steel
