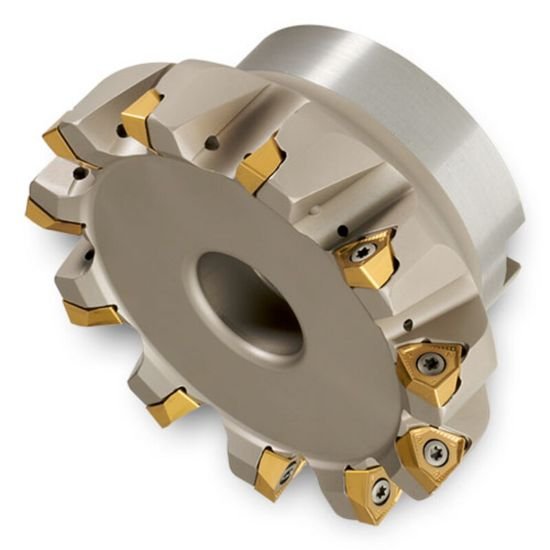

Picture of Ingersoll DJ5P-40R01 Milling Cutter 90.0° 4.000 Shell1.5000 8 Flute Coolant 0.362 Max DOC 2.375 OAL

Ingersoll DJ5P-40R01 Milling Cutter 90.0° 4.000 Shell1.5000 8 Flute Coolant 0.362 Max DOC 2.375 OAL

Part Number: ING3031740 ISO: DJ5P-40R01 ANSI:DJ5P-40R01
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009452
Vendor: Sussex Tool and Supply
$998.67

Description

INGERSOLL 3031740 Trigon 90.0°, Face Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.3620
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
