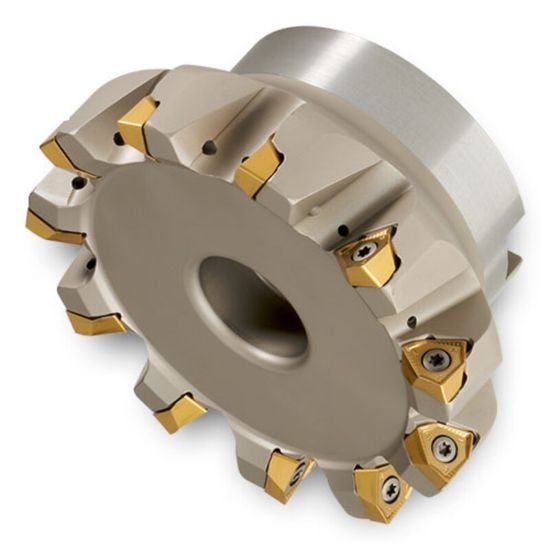

Picture of Ingersoll DJ5F-30R02 Milling Cutter 90.0° 3.000 Shell1.0000 9 Flute Coolant 0.244 Max DOC 1.750 OAL

Ingersoll DJ5F-30R02 Milling Cutter 90.0° 3.000 Shell1.0000 9 Flute Coolant 0.244 Max DOC 1.750 OAL

Part Number: ING3070006 ISO: DJ5F-30R02 ANSI:DJ5F-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1009556
Vendor: Sussex Tool and Supply
$1,050.00
INGERSOLL 3070006 Trigon 90.0°, Face Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.7500 44.45MM
Coolant Thru Thru Coolant
Flutes/Inserts 9
Tool Dia 3.0000 76.20MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 9
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.2440
Cut Dia Max 3.0000 76.20MM
Cutting Edge Angle 90.0°
