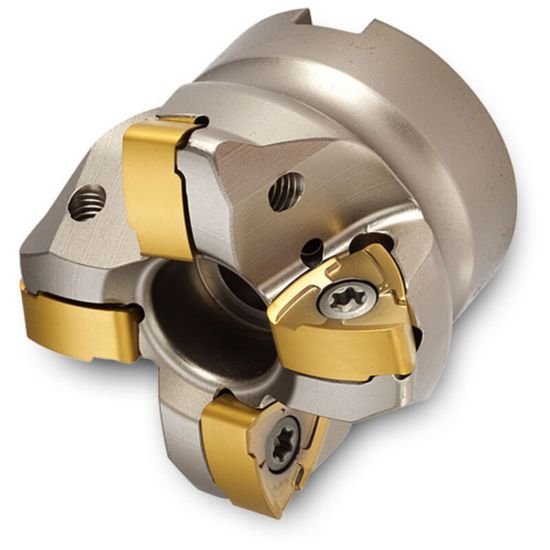

Picture of Ingersoll DG6P-25R01 Milling Cutter 2.500 Shell0.7500 4 Flute Coolant 0.0787 Max DOC 1.570 OAL

Ingersoll DG6P-25R01 Milling Cutter 2.500 Shell0.7500 4 Flute Coolant 0.0787 Max DOC 1.570 OAL

Part Number: ING2912581 ISO: DG6P-25R01 ANSI:DG6P-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008427
Vendor: Sussex Tool and Supply
$662.00
INGERSOLL 2912581 Trigon Feed Mill SHELL0.7500 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5700 39.88MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Cut Dia Min 1.7230 43.76MM
Depth Of Cut Max 0.0787
Cut Dia Max 2.5000 63.50MM - 2-1/2
Max Ramp Angle 0.60°
