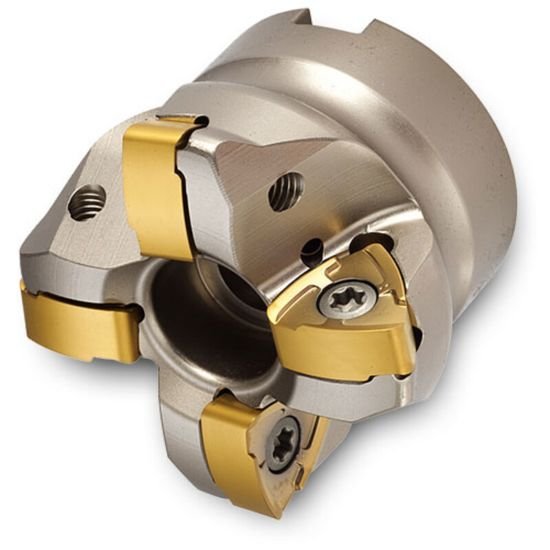

Picture of Ingersoll DG5P-40R01 Milling Cutter 4.000 Shell1.5000 7 Flute Coolant 0.0787 Max DOC 2.375 OAL

Ingersoll DG5P-40R01 Milling Cutter 4.000 Shell1.5000 7 Flute Coolant 0.0787 Max DOC 2.375 OAL

Part Number: ING2912616 ISO: DG5P-40R01 ANSI:DG5P-40R01
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1008432
Vendor: Sussex Tool and Supply
$980.00

Description

INGERSOLL 2912616 Trigon Feed Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Flutes/Inserts 7
Tool Dia 4.0000 101.60MM
Performance & Capacity
Cut Dia Min 3.2120 81.58MM
Depth Of Cut Max 0.0787
Cut Dia Max 4.0000 101.60MM
Max Ramp Angle 0.30°
Materials & Finish
Tool Material Steel
